Tongxing Intelligent Launches GW2208 Smart Gateway to Enhance Multi-Protocol Communication

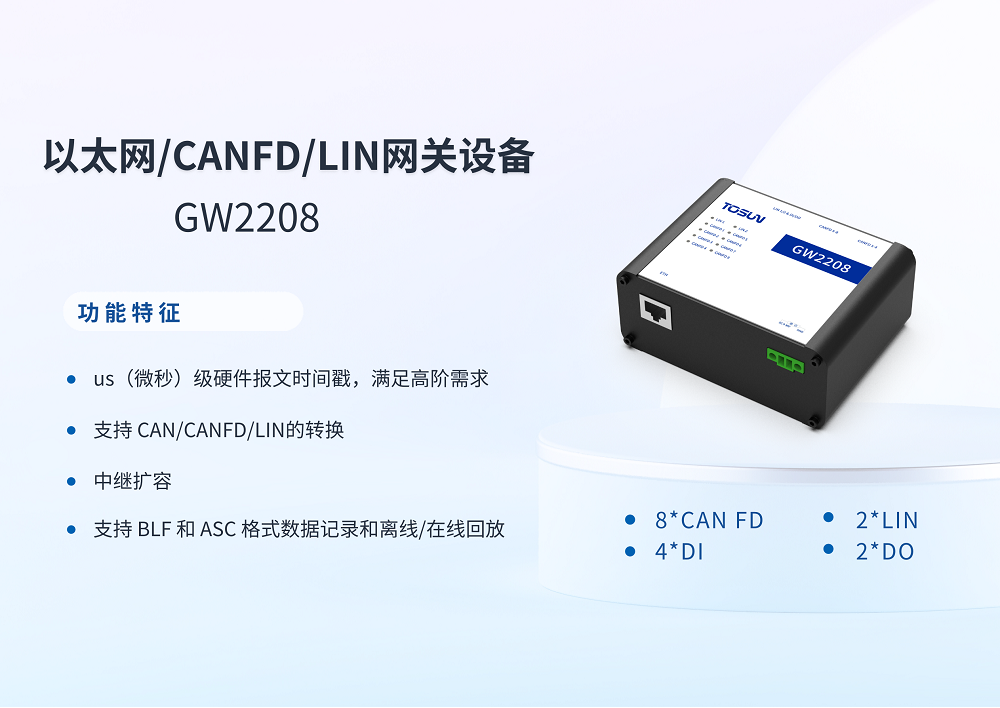

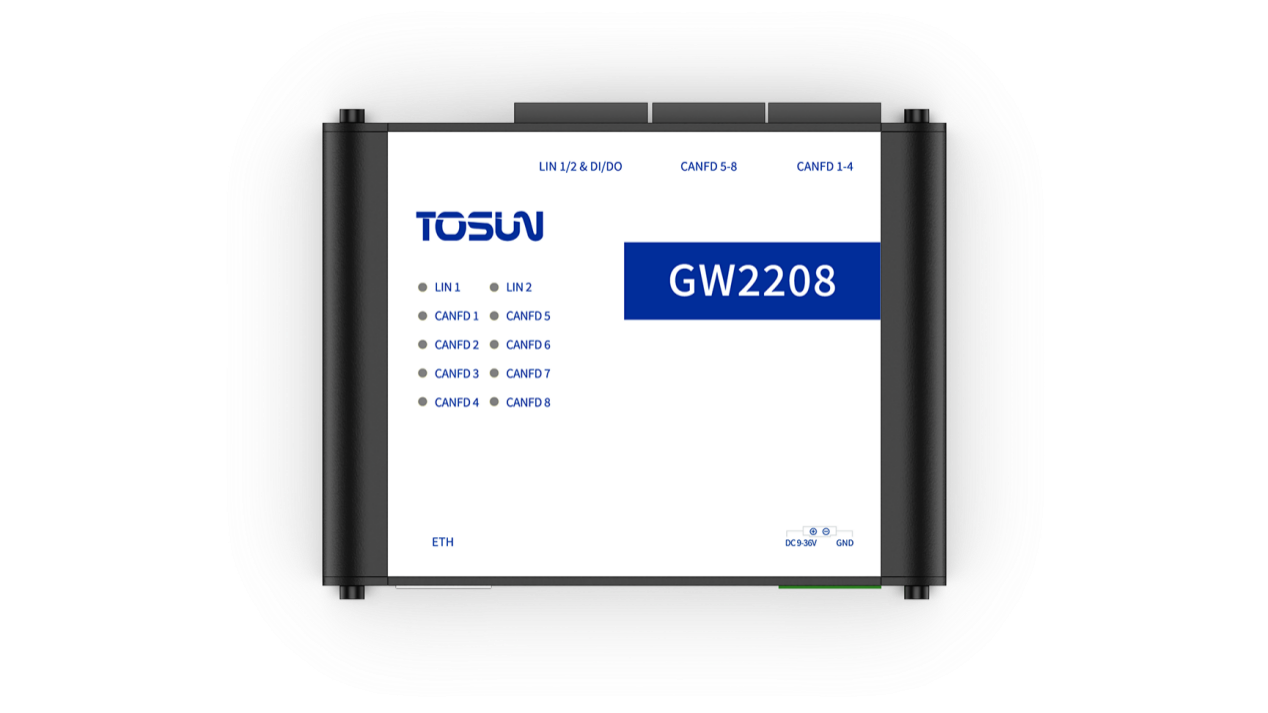

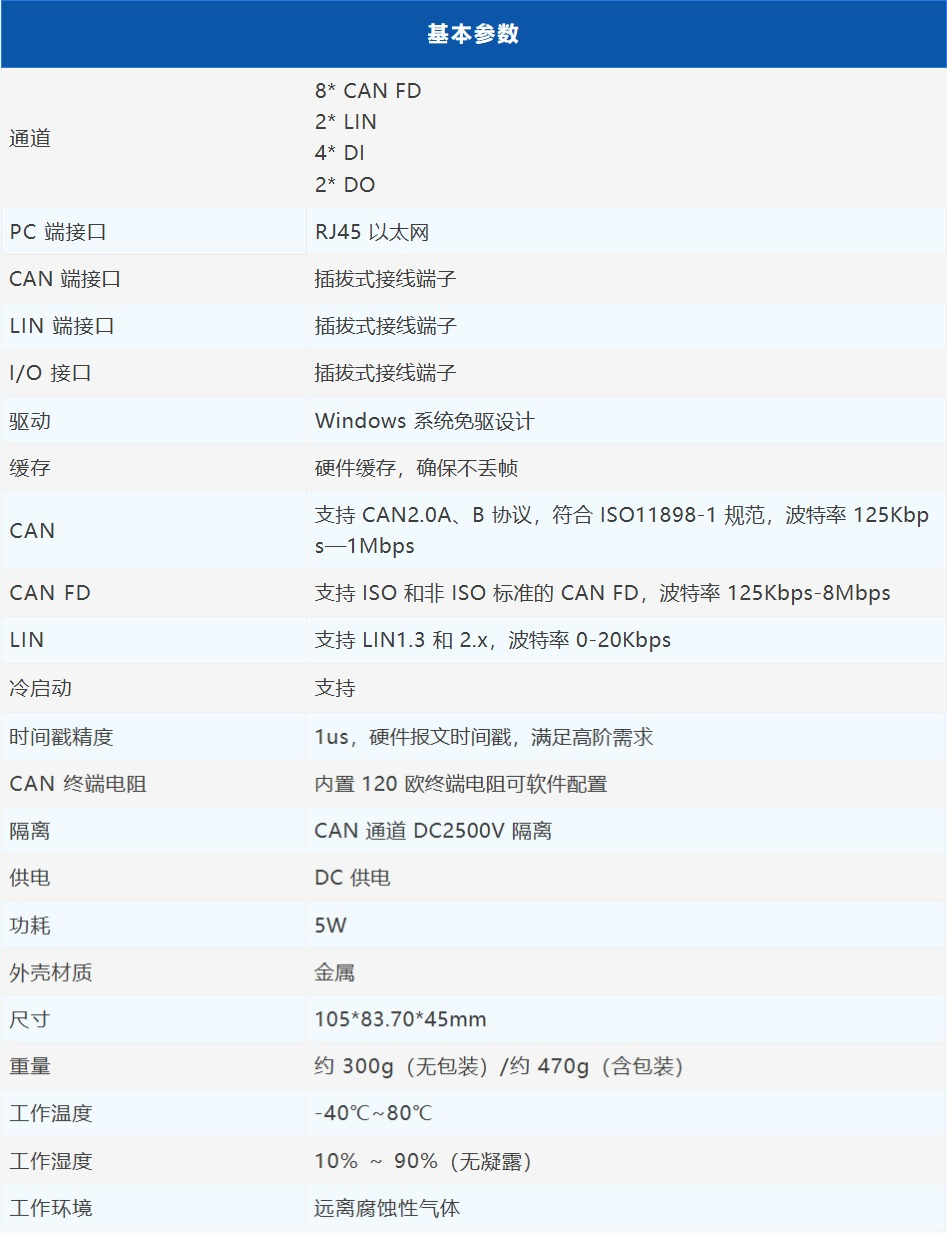

In the field of automotive electronics and industrial communication, the complexity brought by the coexistence of multiple bus protocols has always been a challenge for engineers. Tongxing Intelligent has officially launched the GW2208 smart gateway, a groundbreaking multi-protocol conversion hub with a robust configuration of 8 channels of CAN/CANFD + 2 channels of LIN + digital I/O, redefining the flexibility and efficiency of bus communication. The GW2208 is a gateway device that converts CAN/LIN to Ethernet, supporting both online and offline use (offline gateway functionality will be supported in future upgrades). It integrates advanced CAN/CANFD and LIN bus technologies and supports various communication protocols and data processing functions. Not only does it support the conversion between CAN and CANFD, but it can also achieve mutual conversion between CAN and LIN, as well as between LIN and LIN. This enables seamless communication between different bus protocols, providing great convenience for bus communication in complex systems. The device features 8 channels of CAN/CANFD, adjustable baud rates from 125Kbps to 1Mbps under CAN protocol, and supports up to 8Mbps under CANFD protocol. It also has 2 LIN master-slave nodes that can be software-configured to support baud rates from 0 to 20Kbps. Additionally, it includes multiple digital I/O interfaces for various signal measurements and system integration. The GW2208 connects to a PC via Ethernet, ensuring high data transmission rates and preventing communication bottlenecks during extensive bus data processing. Coupled with the powerful TSMaster software, it supports loading DBC, LDF, XML, ARXML, and other format database files, making it easy to monitor, analyze, and simulate various bus data, as well as supporting UDS diagnostics, ECU flashing, and CCP/XCP calibration functions. Key Features: - Microsecond-level hardware message timestamp to meet high-end requirements; - Driver-free design for Windows systems; - 8 channels of CAN/CANFD, and 2 channels of LIN; - Supports DO *2, DI *4; - Supports conversion between CAN/CANFD/LIN; - CAN channel baud rates adjustable from 125Kbps to 1Mbps, with CANFD supporting up to 8Mbps; - LIN channel protocol supports LIN 1.3 and 2.x, baud rate from 0 to 20Kbps; - LIN bus master-slave nodes can be software configured; - Built-in 120Ω termination resistor for CAN can be software configured; - Supports Self-ACK configuration for CAN; - CAN/CANFD/LIN message filtering; - Relay expansion; - Supports BLF and ASC format data logging and offline/online playback; - Provides example projects based on API interfaces for secondary development; - Free setting of conversion rules with persistent storage, offline gateway functionality (to be supported in future upgrades).
